Feature
- Application

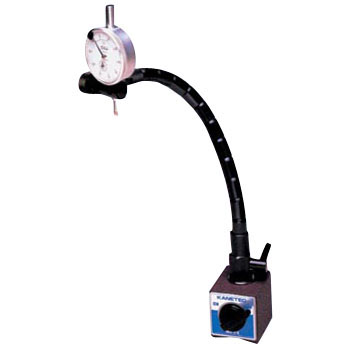

- Used for holding measuring instrument on machines or iron plate.
- 2013 Trusco published pages
- 1-0706
- 2012 Trusco published pages
- 1-0631
- Magnet dimensions (mm)
- 5058x55
- Main post dimensions (diameter x length) (mm)
- φ16x315
- Adsorption strength (N [kgf])
- 800 [80] Absorption ability is at SS400 on a grinded machined surface, with 10mm board thickness.
- Principal post mounting screw-threaded side (mm)
- M8x1.25
- Principal post mounting screw-based side (mm)
- M8x1.25
- Dial gauge mounting hole (mm)
- 6.0/8.1
- Mass (kg)
- 1.5
- Description 2
- From the small models to the large models, many additional features,etc are added and there are many models so that they can match the various conditions of the measurement parts.
- Trusco No.
- 107-6868
- Specifications
- You can bend flexibly as you like
